Product Introduction
Split type fiber optic marking machine - flexible and efficient, metal carving tool!
Adopting modular design, the laser and marking head are separated, making installation more flexible and suitable for narrow space operations; 20W/30W/50W fiber laser options are available for precise marking of various metals (stainless steel, aluminum, copper, etc.), widely used in industries such as hardware, electronics, and automotive parts, with stable performance and easy maintenance!
Product Parameters
Laser type | fiber laser |
Max marking speed | 7000 mm/s |
Graphic format supported | PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF, etc. |
Beam quality | Less than 1.4 M2 |
Pulse repeat frequency | 20-80KHZ |
Input power | 600w |
Marking line width | 0.01-0.1mm |
Mini character | 0.3 mm |
Laser wavelength | 1064nm |
Oscillating mirror area | 110x110mm/200x200mm/300x300mm |
Cooling way | Air cooling |
Working voltage | AC220V+10% 50Hz / AC110V+10% 60Hz |
Working temperature | 5-35℃ |
Net Weight/ Gross weight | 42 kg/ 60kg |
Machine dimension | 840*400*740mm |
Package | Plywood case |
Accessory included | Rotary device for engraving on cylindrical objects(0.3 mrad) |
Marking depth | 0.01 - 0.7mm |
Product Details
Style Fiber Laser Marking Machine

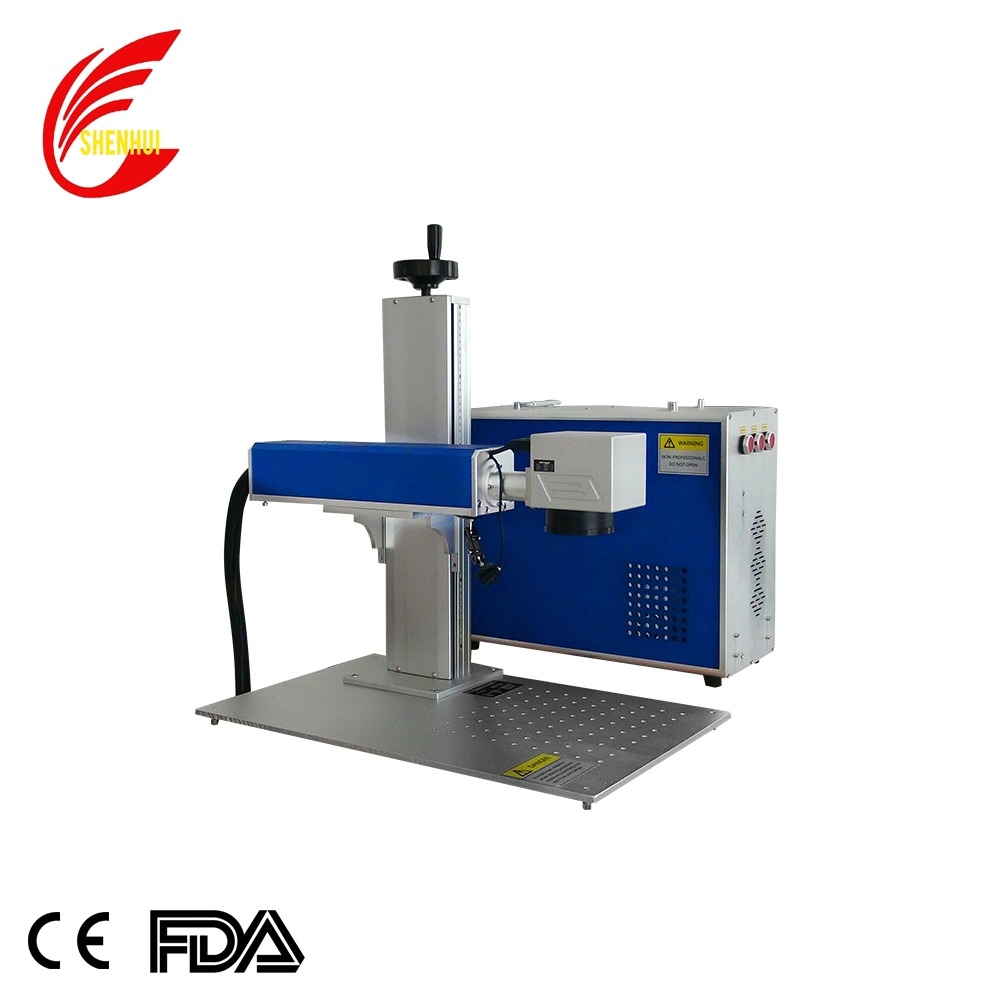

1. Split Type Fiber Laser Marking Machine
2.Cabinet Type Optical Fiber Marking Machine
24 Hours of Uninterrupted Work: Support Many Different Language for Choose
Product Structure
NO.1 Galvanometer Good results, no distortion, improve the quality and speed of the marking machine. | |
NO.2 Lifting Shaft Manual lifting shaft,adjust the lens height by turning,to achieve the desired result. | |
NO.3 HD Ruler Convenient and quick marking,beautiful effect,marking positioning is more accurate. | |
NO.4 Control Panel Humanized control system,control, power supply, mechanism switch,air switch with leakage protector. | |
NO.5 Workbench Compact structure,sturdy and lightweight,flexible direction,convenient positioning, reliable compliance. |
Product Applications
Plastic Buttons & Electronic Devices: Marking codes or logos.
CMOS Chips: Precise code marking.
Packaging: Marking food packages and color paper.
Jewelry & Clocks: Detailed engraving and marking.
Other High-Precision Applications: Bitmap marking and more.
Advantages
1.Imported high speed galvo scanner. (China brand optional)
2.High precision with repetition as tiny as 0.05mm.
3.Safety, no damage to skin.
4.Fast marking speed with red dot pointer.
5.Simple and convenient operation, easy to learn and handle.
6.Stable structure, little vibration during work.
7.Adopting Air Cooling way.
8.Run without maintenance.
9.Three-year Quality Assurance
Services
Pre-Sale Services:
Consultation and Advice: As your reliable advisor, we provide expert guidance to ensure you fully understand the machine and assist in selecting the most suitable model for your specific needs.
Transparent Pricing: We offer clear, upfront pricing, so you know exactly what to expect, with no hidden costs.
Honest Service: Our approach is to provide honest, impartial advice, focusing on your best interests and helping you make the right choice.
Services During the Sale:
Pre-Production Check: We verify that the machine meets all your requirements before production begins.
Pre-Delivery Inspection: A thorough inspection is conducted to ensure the machine adheres to the agreed-upon specifications before shipment.
Customer Support: Our team is available at all times to assist you with any questions or concerns during the purchasing process.
After-Sale Services:
Operation Guidance: We offer detailed instructions and training to ensure correct and safe operation of the machine.
Technical Support: Our dedicated technical team is ready to provide support and resolve any issues that may arise.
Quick Response: We guarantee a response within 24 hours to address any concerns or inquiries you may have.
Spare Parts and Repair Services: We provide efficient replacement of spare parts and repair services to keep your machine in optimal condition.
Payments
Payment Terms | Alibaba trade assurance, L/C, T/T, Western Union, PayPal Begin production after 30% payment, send machines after full payment. |
Production Time | Production time:3~15days |
Shipping | 1. Send small machine or parts by DHL or TNT |
2. By air, by sea, by railway |
